BMW digital cluster retrofit by chassis code
From the E60 5 Series to the F15 X5: digital clusters matched to each BMW chassis and factory system.

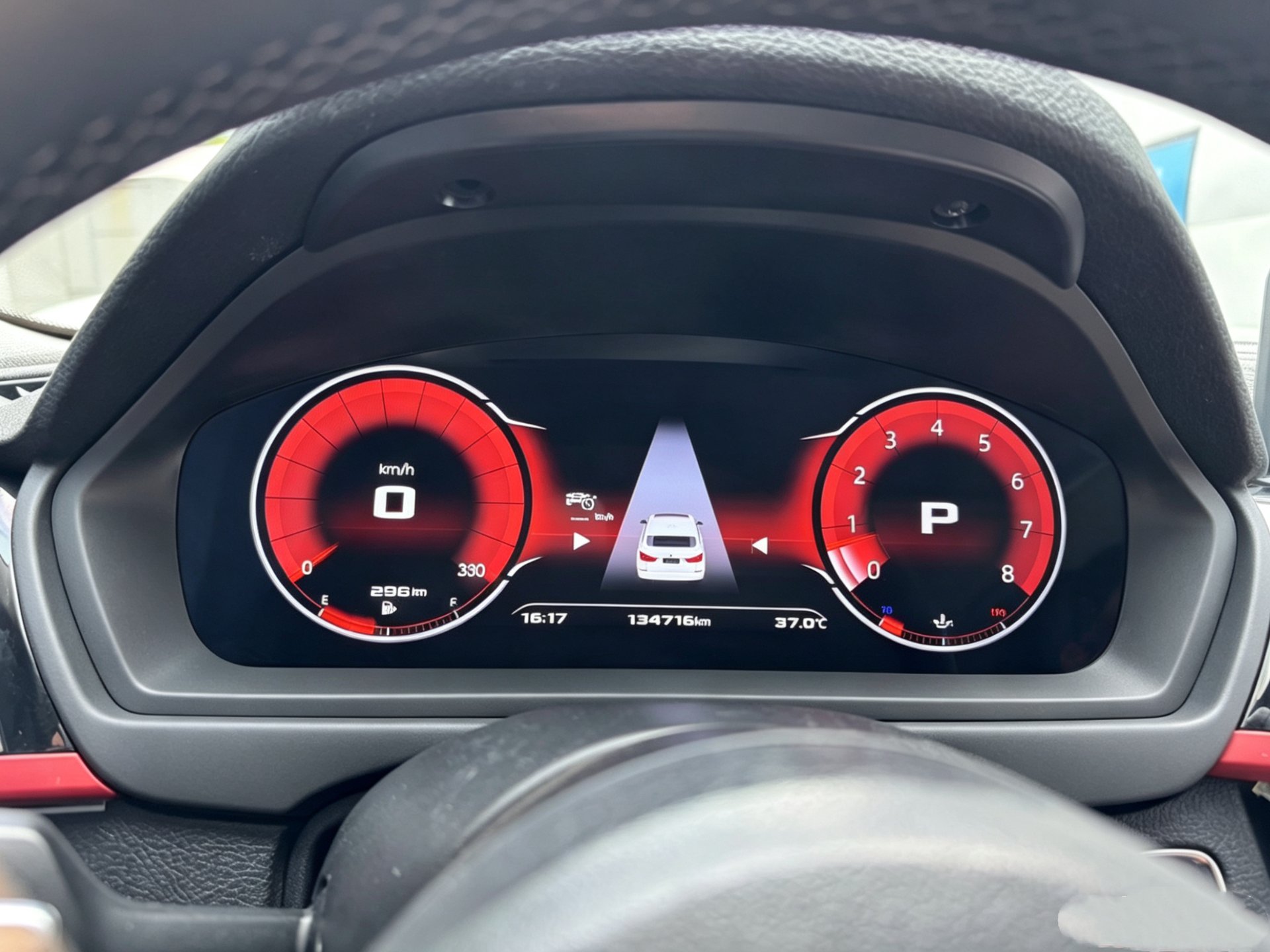

Installed
BMW fitment table
7 fitment groups covering the full range. Confirm the factory system before ordering.
| Model | Years | Panel | Factory system | Fitment type |
|---|---|---|---|---|
| 1 Series / X1 / X2 (F20, F48, F49) | 2013-2017 | 10.25" | NBT | Integrated replacement |

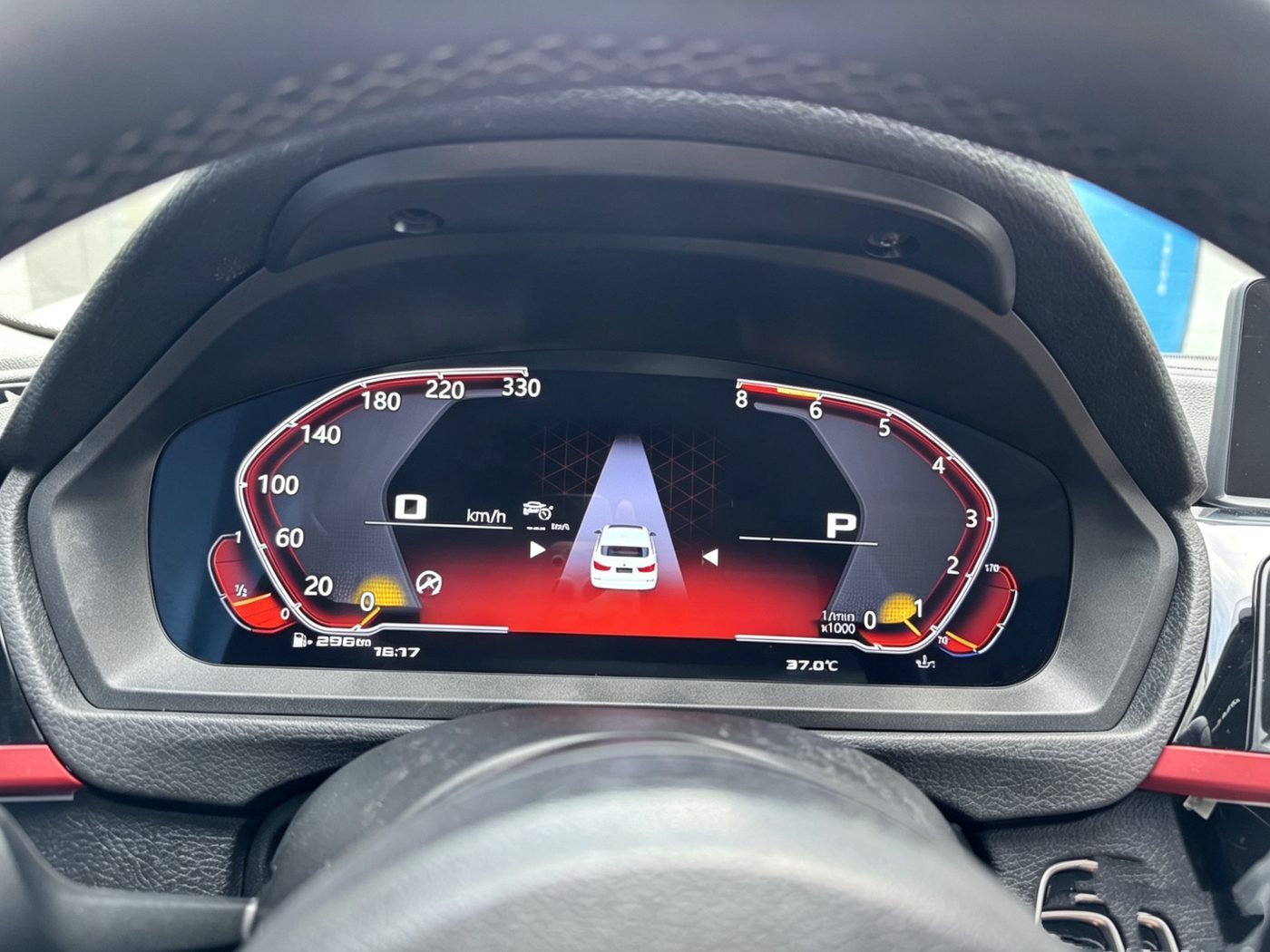

| 3 Series / 4 Series (F30-F36, F80/F82) | 2013-2020 | 12.3" | NBT / EVO | Integrated replacement |

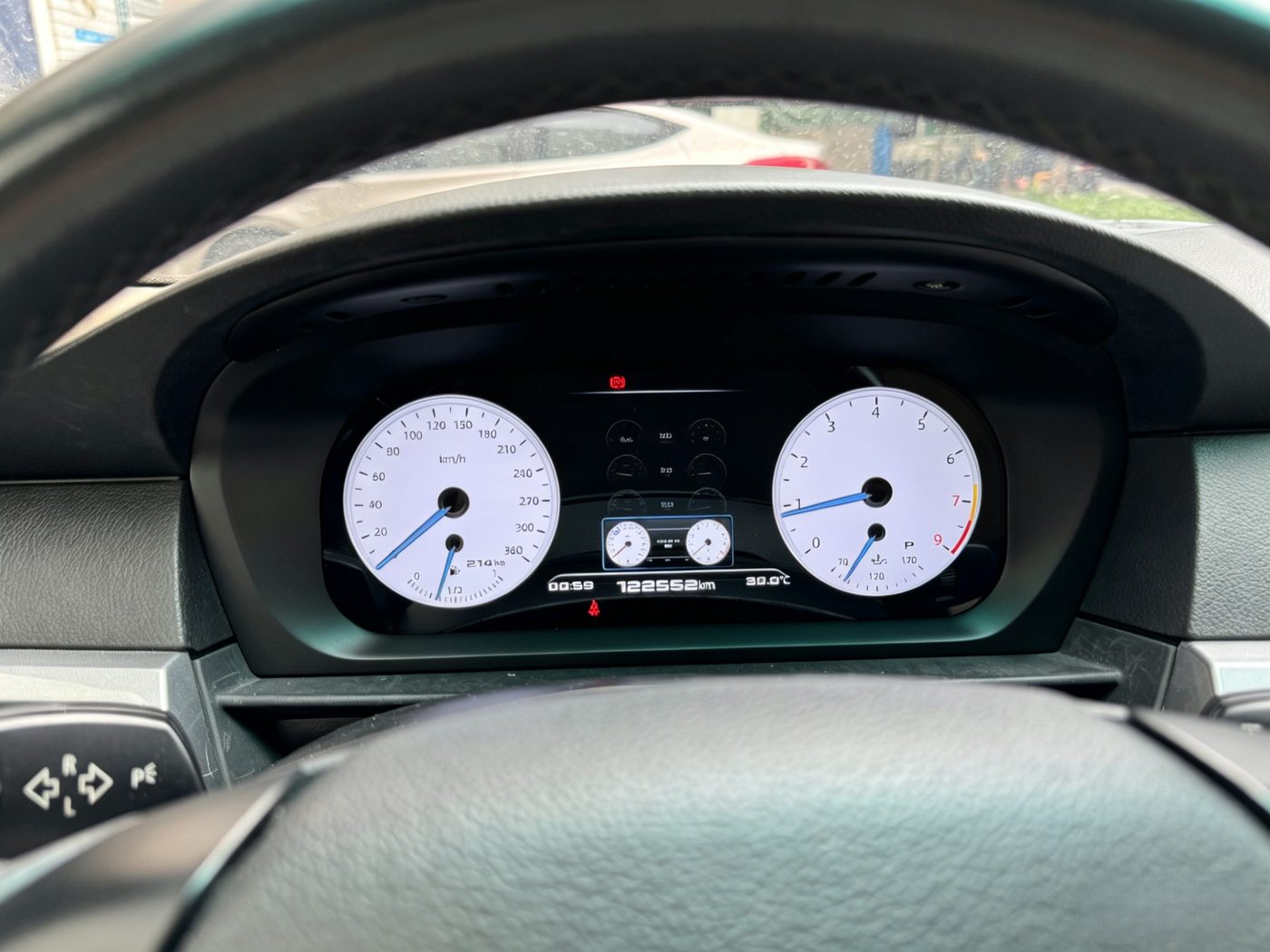

| 5 Series (E60) | 2006-2010 | 10.25" | CCC / CIC | Integrated replacement |

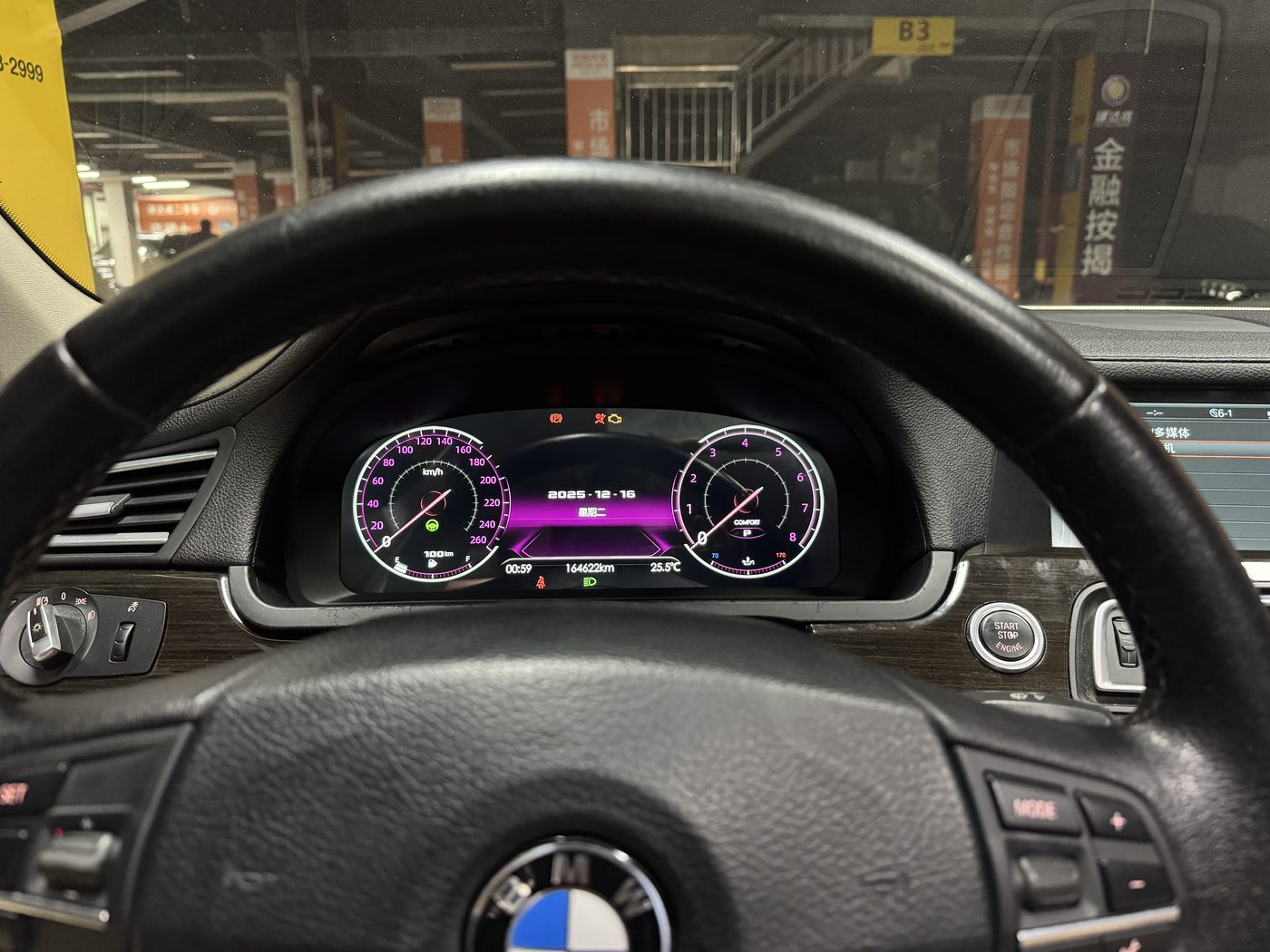

| 5 Series / 5 GT / 6 / 7 Series (F10, F07, F06, F01) | 2009-2017 | 12.3" | CIC / NBT / EVO | Add-on cluster |
| X3 / X4 (F25, F26) | 2011-2017 | 12.3" | CIC / NBT / EVO | Add-on cluster |
| X5 / X6 (F15, F16) | 2014-2018 | 12.3" | CIC / NBT / EVO | Add-on cluster |
| X5 / X6 (E70, E71) | 2006-2013 | 10.25" | CCC / CIC | Integrated replacement |
Notes for installers
BMW fitment depends on the factory system generation (CCC, CIC, NBT, EVO). Integrated replacement clusters swap the full unit; add-on clusters mount in front of the original cluster and hide it, which keeps the factory look intact. Check the system generation against the table before ordering.
Wholesale and distribution enquiries
Send us your market, the models you sell into and your target volume — we reply with trade terms within one business day.
Request a quote
